Medical wearables are not simply smaller electronic devices. Their real engineering challenge is maintaining physiological signal quality while the product moves, stretches, contacts the skin, and operates under changing real-world conditions.

In one rehabilitation wearable project, the objective was to capture microvolt-level electromyographic signals non-invasively and convert them into data suitable for professional assessment and guided training. Achieving this required much more than designing a high-performance circuit board.

The signal had to travel from the body through electrodes, conductive textiles, mechanical interfaces, acquisition electronics, wireless modules, and testing software before becoming usable information. Every interface introduced another potential failure point that had to be controlled during both engineering and production.

A Wearable Product Is a Connected System

The final product combined several closely linked subsystems:

• A multichannel bioelectrical signal acquisition module
• Two wireless inertial sensors for posture and movement monitoring
• A magnetic charging case and a conductive garment connecting the electrodes to the electronics

Each complete set had to be assembled, paired, tested, identified, and packaged as one traceable system. Firmware versions, left-right sensor assignment, test records, garment sizes, device identification, and packaging information all needed to remain correctly linked.

A functioning PCBA alone could not guarantee a deliverable product. A tilted connector, reversed magnet, unstable contact, incorrect sensor pairing, sewing deviation, or mismatched garment size could prevent the complete system from shipping.

For wearable teams, this is an important distinction. Product reliability is often determined less by individual components than by how effectively the interfaces between them are designed, inspected, and controlled.

When the Signal Path Enters the Textile

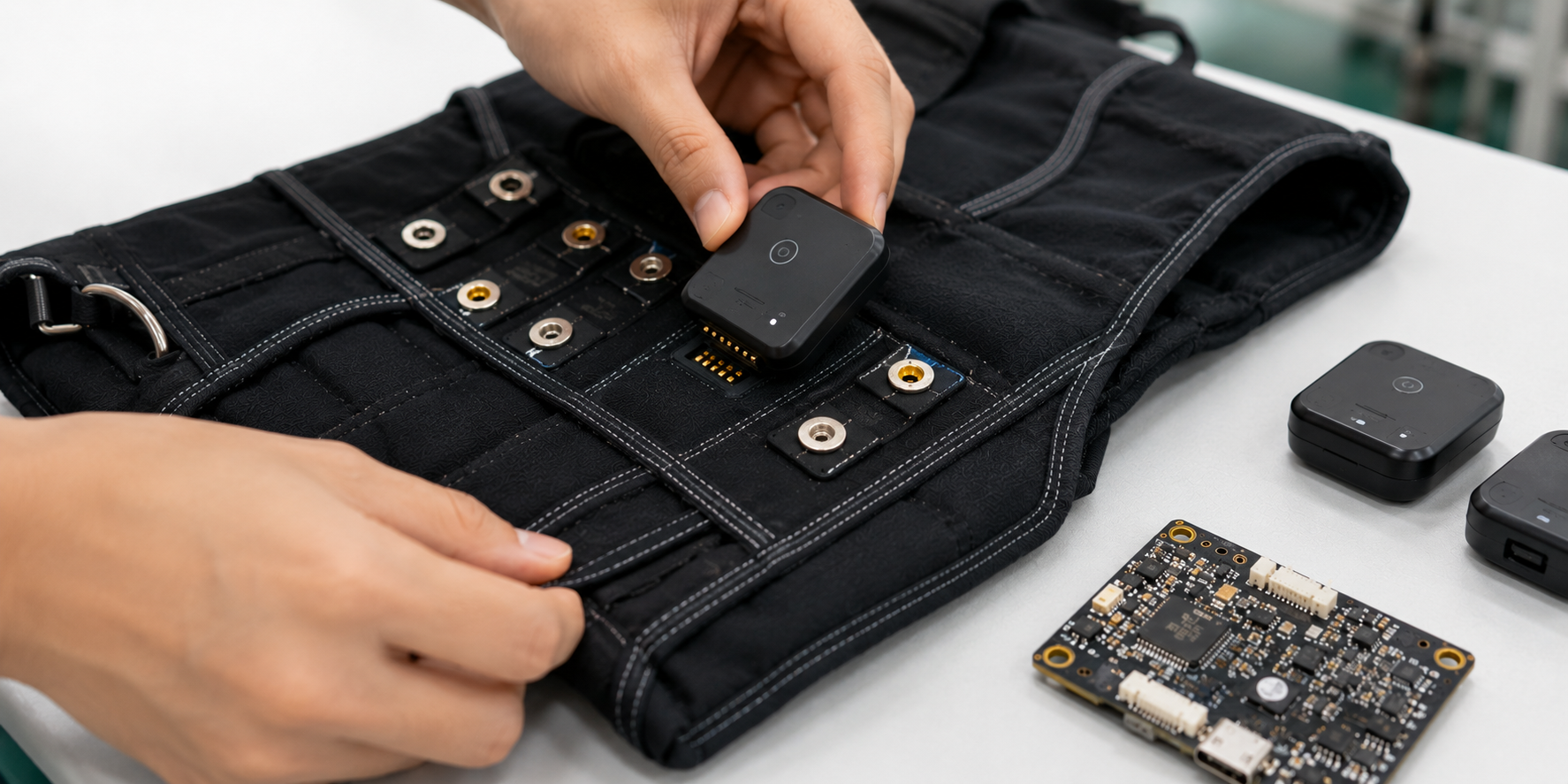

Part of the electrical signal path in this project existed inside a soft, stretchable garment. Conductive elastic elements carried signals from body-contact electrodes toward the acquisition module, while metal snaps served as both electrical contacts and mechanical attachment points.

A multi-pin pogo-pin interface transferred the signals from the garment into the electronics. These elements had to remain aligned and electrically stable after sewing, stretching, repeated connection, handling, and normal use.

During engineering review, pogo-pin misalignment was identified as a possible cause of unstable channel contact. Rather than relying only on visual inspection, the enclosure was used as a practical checking fixture to verify connector position and assembly fit.

The garment process also required measurable standards for conductive routing, electrode position, snap placement, sewing accuracy, structural-part integration, and final inspection. This brought electronics-style process control into a textile manufacturing environment.

Manufacturing Across Industry Boundaries

The product required a supply chain spanning electronics, mechanical parts, textiles, assembly, packaging, and specialist testing. Production involved several PCBA types, close to ten injection molds, precision metal parts, magnets, pogo pins, ultrasonic welding, laser marking, garment sewing, battery assembly, and signal test equipment.

Across the different modules, more than 1,400 PCBAs were produced, including manufacturing allowances and backup quantities. The main challenge was not simply finding suppliers, but ensuring that companies from different industries worked toward the same system-level requirements.

A garment factory may focus on appearance, stitching, fit, and fabric quality, while an electronics factory focuses on soldering, component placement, electrical performance, and traceability. A medical wearable requires both disciplines to operate within one controlled production system.

Shared inspection standards were therefore established between the product team, manufacturing team, and garment supplier. This reduced ambiguity around cosmetic defects, structural acceptance, connector positioning, assembly handling, and responsibility for nonconforming parts.

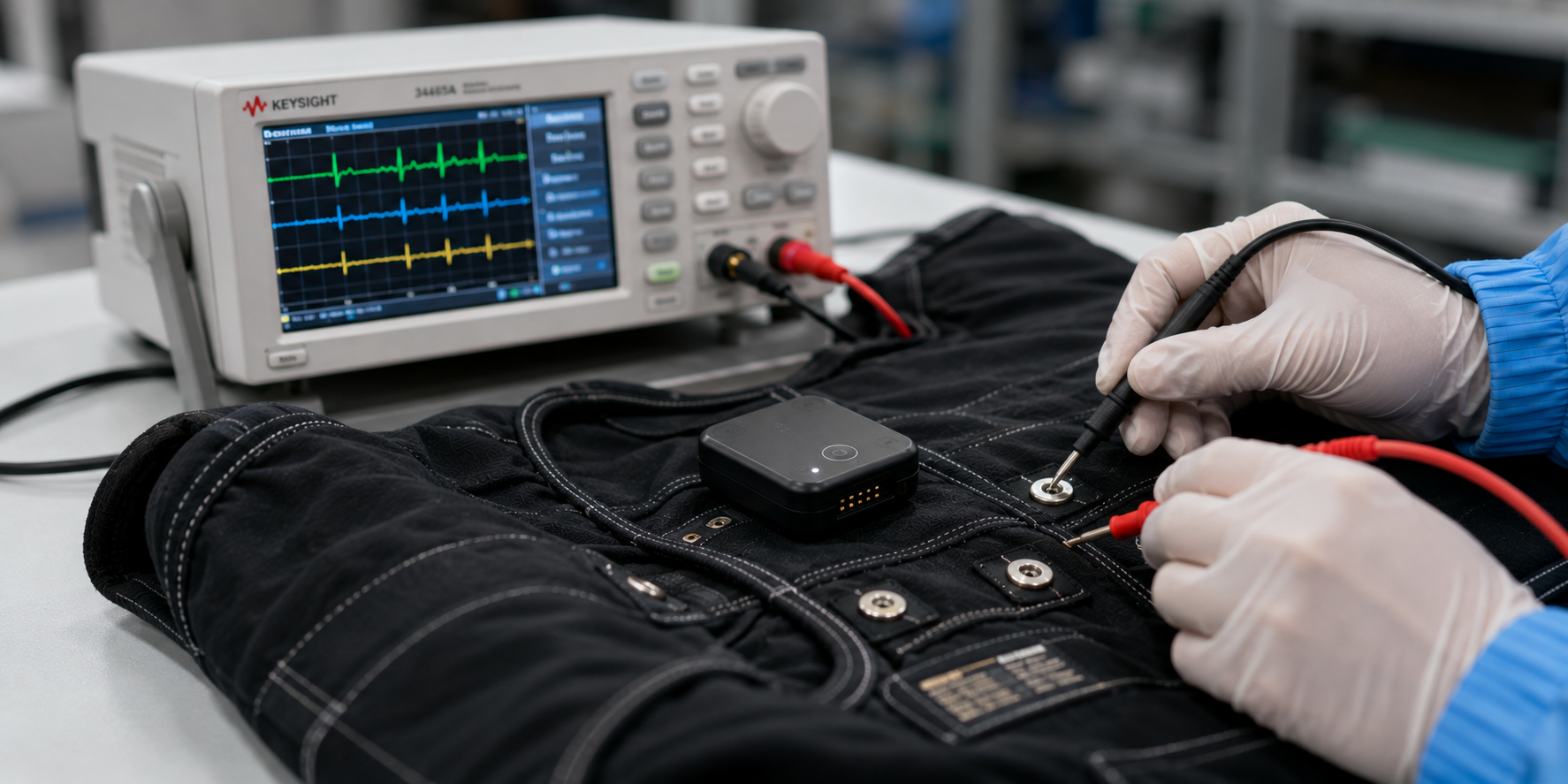

Microvolt Signals Require a Different Testing Strategy

Bioelectrical signals are highly sensitive to noise, skin contact, reference position, and environmental interference. Ordinary power-on and communication tests could therefore not confirm whether the product was ready for its intended use.

The production test process needed to evaluate:

• Signal amplitude accuracy, baseline stability, and channel consistency
• Common-mode rejection, mains-frequency interference, and background noise
• Response to simulated muscle signals under controlled test conditions

The manufacturing team initially had limited experience with this type of specialist testing. Engineers studied the client’s test process on site, clarified the required equipment, software, connections, and acceptance criteria, and then transferred the method into the production environment.

Python-based test scripts were deployed to improve repeatability and data collection. Test fixtures and connection methods were also reviewed to reduce setup variation and operator-dependent differences between units.

In an initial validation batch of approximately 50 systems, all but one passed. The remaining unit produced an out-of-range result on a single channel and was isolated for further investigation rather than being accepted based only on basic functionality.

The key lesson is that testing is not simply the final gate for a bioelectrical wearable. It is part of the product architecture and must be considered when defining hardware interfaces, fixtures, software tools, traceability, and production capacity.

Production Exposes What Prototypes Often Miss

The pilot and production stages revealed issues across mechanics, supplied components, materials, assembly, and process control. These included housing deformation, incorrect left-right assembly, reversed magnet polarity, adhesive storage problems, screw mismatches, PCBA interference, and battery adhesion failure.

Additional issues involved LED batch variation, silicone residue, connector alignment, and inconsistent charging contact. None represented the entire product, but each could interrupt assembly, testing, charging, or final system operation.

One early structural-part batch also showed an appearance defect rate above 50%. The selected fine surface texture was sensitive to handling marks, while the parts passed through inspection, assembly, ultrasonic welding, laser marking, packaging, and transportation.

Sorting alone would not have solved the problem. Handling points were reviewed, acceptance criteria were aligned, replacement parts were arranged, and process controls were updated. Adhesive storage, polarity inspection, incoming checks, assembly fixtures, and operating instructions were also improved.

This is what production engineering adds to a wearable project. It identifies not only the defect, but also the process conditions that allowed it to appear, repeat, or spread.

From Engineering Concept to Approximately 300 Traceable Systems

The project moved from engineering development to the delivery of approximately 300 complete systems within about one year. Each system included electronics, paired wireless sensors, a charging case, a size-specific conductive garment, functional test records, and traceable identification.

The production flow covered assembly, firmware control, wireless pairing, signal testing, simulated-use testing, size matching, packaging, and phased delivery. These activities had to remain coordinated because an error in one area could affect the traceability or usability of the entire set.

A cross-functional team of roughly 20 engineers and specialists contributed across electronics, mechanical engineering, quality, sourcing, testing, production, and packaging. This level of coordination was necessary because no single department controlled every critical interface.

The most important result was not the production quantity alone. It was the creation of a repeatable manufacturing pathway for a product spanning electronics, textiles, wireless communication, human interaction, and specialist medical testing.

What Wearable Teams Should Plan Earlier

For wearable startups and medical device teams, the largest risks often sit between established disciplines. The sensor may work and the PCB may be manufacturable, but that does not automatically mean the complete system is ready for pilot production.

Before scaling, teams should define three areas clearly:

• How signal quality will be maintained after repeated wearing, stretching, and repositioning
• How textiles, multiple modules, firmware, pairing records, and product identification will be inspected and traced
• How laboratory test methods and supplier quality standards will be transferred into repeatable production processes

Addressing these questions early can reduce repeated pilot builds, unclear supplier responsibility, delayed testing, inconsistent inspection, and late-stage redesign.
