Fifty devices that eventually pass inspection do not necessarily represent a successful 50-unit pilot build. If engineers must reseat connectors, select favorable parts, repeat calibration, adjust assembly pressure, or manually recover failed units, the shipment may be complete while the process remains unready for scale.

A pilot run has a different purpose from prototyping. A prototype demonstrates that a product can work. A pilot must show that released designs, production-intent materials, normal operators, defined equipment, and controlled instructions can reproduce the intended product without depending on undocumented engineering intervention.

That distinction is especially important for wearables. Compact PCBAs, dense component placement, batteries, radios, sensors, skin-contact materials, adhesives, molded housings, and sealing systems are compressed into a product that must operate while worn, moved, charged, dropped, exposed to sweat, and connected wirelessly. A small process shift can affect signal quality, power stability, waterproofing, cosmetic appearance, or field life.

A Pilot Run Is a Test of the Manufacturing System

Treating a pilot as a larger prototype build creates the wrong incentives. The team tries to make every unit pass, hides workarounds inside experienced operators, and reports final yield without measuring how the result was achieved. That may produce a good-looking shipment while leaving the factory dependent on sorting, retesting, rework, or individual judgment.

A useful pilot uses the intended BOM, approved suppliers, actual component packaging, released files, production fixtures, controlled firmware, documented inspection criteria, final assembly processes, and traceable records. Any necessary deviation should be visible, approved, and connected to corrective action.

The central question is not whether the factory can build the product once. It is whether the process can continue building it when normal variation enters through component lots, solder paste, molded parts, operators, fixtures, calibration stations, firmware versions, and downstream assembly.

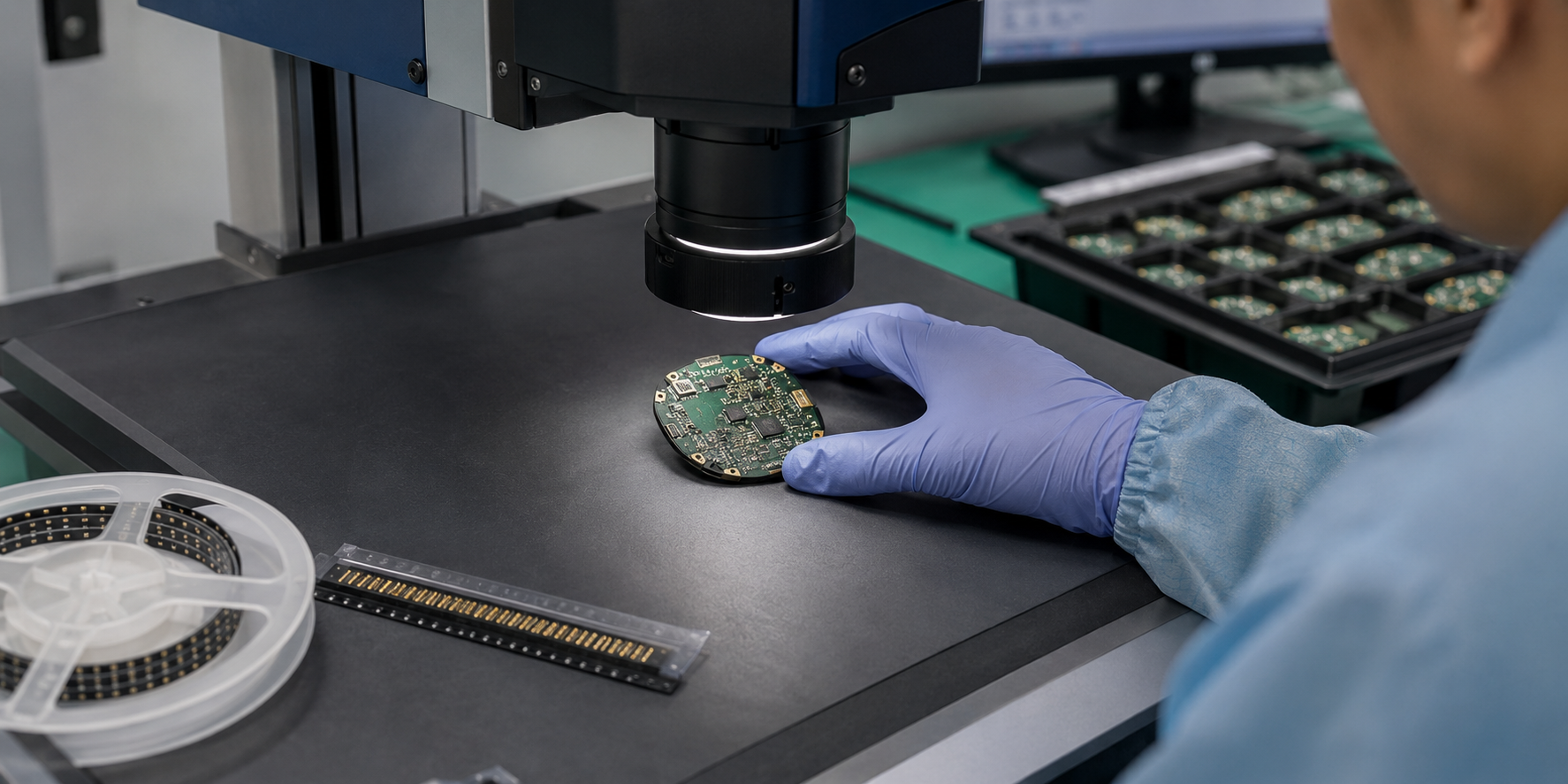

1 Validate Manufacturability and the SMT Process Window

One of the highest-value outcomes of a pilot is finding design details that technically function but do not provide a stable manufacturing window.

A 50-board v2.0 pilot build for a compact fitness wearable exposed a mismatch between the land pattern for several 0402 components and the dimensions of the purchased parts. Excessive exposed pad length at both terminations reduced the effective solder fillet and created a risk of insufficient solder, even though the boards could still power on and pass an initial functional check.

The issue was documented with measured dimensions and inspection evidence, then returned to the design team with a recommended pad revision. The v3.0 layout was updated around the actual component geometry, and a subsequent 500-board order moved through production and shipment without repeating the original concern.

This is what DFM should accomplish during a pilot. Findings need to become controlled design changes, revised manufacturing data, updated inspection criteria, and a verified next build. SPI, AOI, X-ray where appropriate, dimensional inspection, and functional testing should together confirm that the process window can tolerate normal placement and material variation.

2 Confirm Packaging and Placement for Nonstandard Components

Wearables frequently use components that are electrically simple but difficult to automate, including pogo pins, spring contacts, miniature FPC connectors, microphones, optical assemblies, antennas, and custom mechanical-electrical parts. Their supplier packaging can be as important as their datasheet.

During preparation for a 2,000-set wearable and charging-dock build, miniature pogo pins arrived as loose parts. Their small size and required vertical orientation made consistent automated placement impractical. A manual workaround might have supported a small prototype quantity, but it would have introduced placement variation, labor dependency, and avoidable rework at production volume.

The component supplier was therefore required to provide the pins in carrier tape suitable for the SMT feeder and placement process. That single change converted a fragile manual operation into a repeatable automated step before the volume build began.

A production-ready BOM should identify more than the manufacturer part number. Packaging suffix, orientation, feeder and nozzle requirements, reflow limits, and inspection method may all affect line readiness. These characteristics should be checked with the actual production package rather than assumed from a loose sample.

The pilot should also confirm that alternate suppliers provide an equivalent manufacturing format. A substitute component that fits the PCB but cannot run through the approved placement process is not yet a qualified substitute.

3 Qualify Mechanical Parts and Surface Finishes

For a wearable, the enclosure is simultaneously a structural system, a sealing interface, an RF environment, and a surface the user sees and touches every day. Dimensional compliance alone does not confirm that the molded part or finish is ready for production.

During the production ramp of a child-oriented voice device, a rear housing showed localized surface-layer separation during a supplier cross-hatch adhesion test. The same behavior could not initially be reproduced using the factory’s existing tape test. That disagreement was itself a warning: release decisions cannot be trusted until the test method, tape, conditioning, sample location, and acceptance criteria are aligned.

The response included cleaning the mold to remove possible release-agent residue, redrying the resin, adjusting molding parameters, and repeating the evaluation. When the localized condition remained, the affected area, likelihood of propagation, functional impact, delivery requirement, and longer-term material options were reviewed together.

A controlled acceptance was used for the bounded batch after the affected area was confirmed to be limited and unlikely to expand under representative handling. A material-change evaluation remained open as the longer-term path. The important output was the documented chain from abnormal result to investigation, retest, risk decision, containment, and future action.

Pilot validation for mechanical and cosmetic parts may include dimensional capability, assembly fit, coating adhesion, scratch resistance, color difference, sweat exposure, and drop behavior. The exact tests depend on the product claim, but the acceptance method must be defined before results conflict.

4 Exercise Power Integrity Under Dynamic Use

Static power-on testing is a weak predictor of wearable stability. Small batteries, compact power paths, radios, audio circuits, haptic motors, displays, storage writes, and sensors can create short load transients that never appear during an idle current check.

A connected voice wearable later produced field reports of unexpected shutdowns. Investigation reproduced a rail transient during audio capture, while cellular activity produced a voltage decline of approximately 0.2 to 0.3 V under the observed condition. Instead of treating the symptom as a generic battery problem, the engineering work separated the audio-acquisition load from the cellular load and reviewed the power path, transient response, and protection thresholds.

Controlled reference assemblies were retained after the investigation to support later comparison across failures, supplier lots, firmware changes, and production checks.

A pilot test plan should exercise realistic combinations of radio transmission, GNSS acquisition, audio recording, sensor sampling, motor activation, low battery, charging, and transitions between these states. The team should monitor supply rails, resets, brownout events, temperature, and recovery—not simply activate each feature separately.

Dynamic testing should use production-intent batteries, protection boards, connectors, cables, and firmware. A bench supply can help isolate a circuit, but it cannot reproduce every behavior of the battery and protection system that will ship.

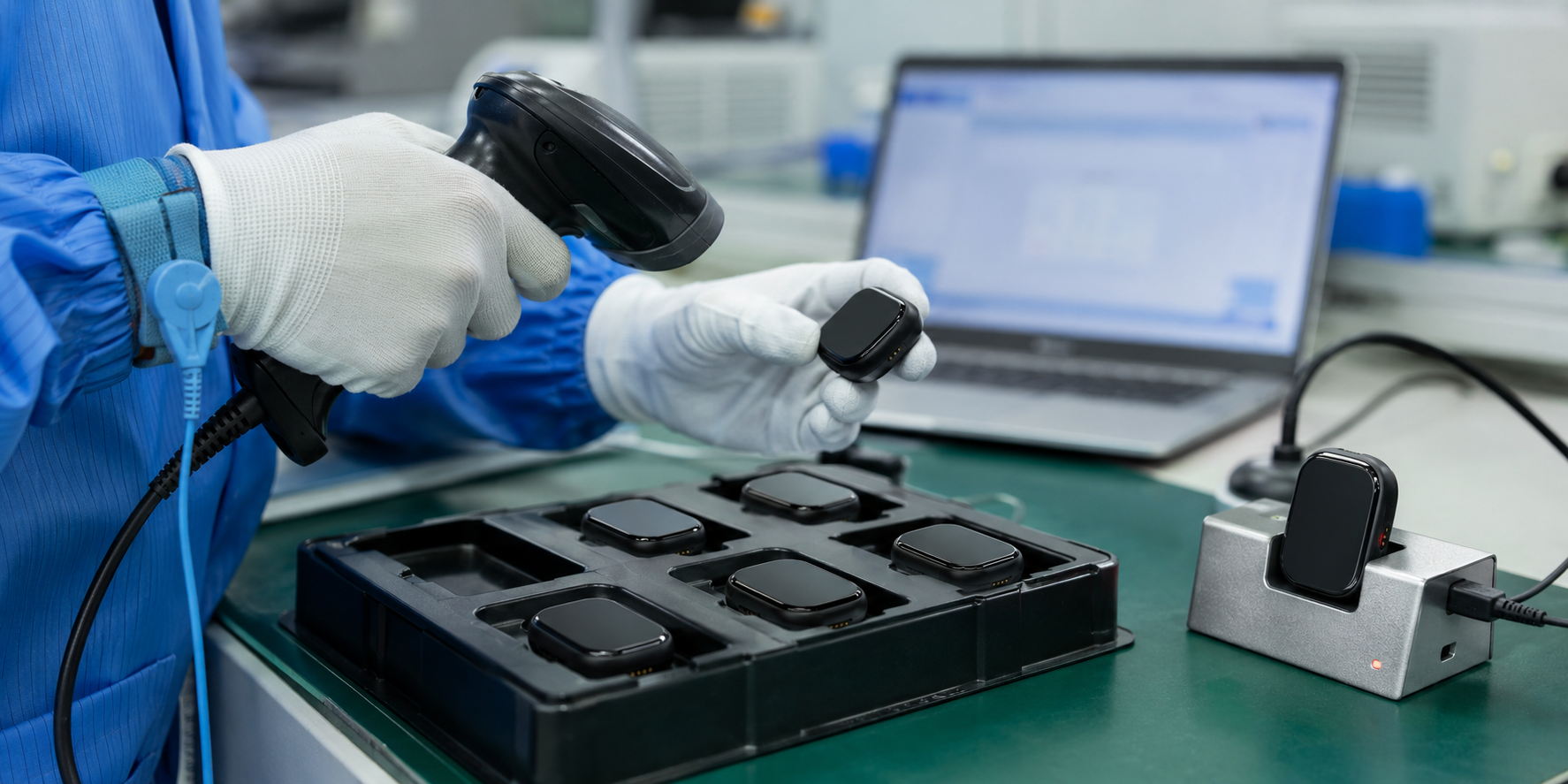

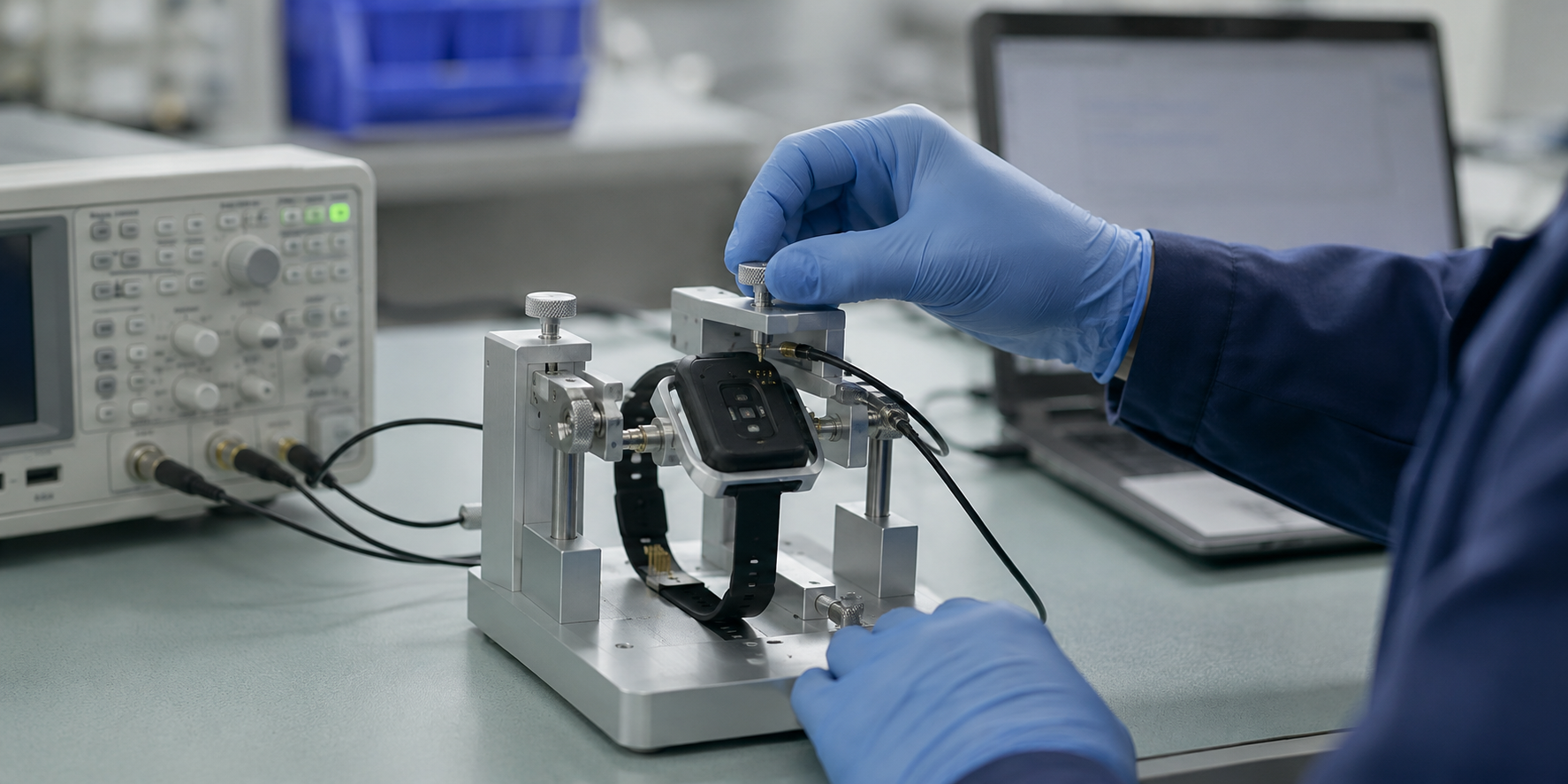

5 Prove Sensor Calibration and Test Coverage

The product value of many wearables depends on IMUs, optical sensors, temperature sensors, pressure sensors, or bioelectrical acquisition. These devices do not become consistent merely because the same part number is fitted to every board. Mounting orientation, component tolerance, optical geometry, mechanical preload, fixture alignment, firmware configuration, and calibration logic all influence the result.

An IMU-based product once entered pilot calibration without sufficiently clear station criteria. First-pass results fell to roughly 50 percent. That did not prove that half of the sensors were defective; it showed that the process could not confidently separate device variation from fixture setup, operator handling, calibration logic, and acceptance limits.

Before release, a calibration station needs defined references, fixture datums, device orientation, software versions, limits, repeatability evidence, cycle time, retest rules, and data retention. Calibration coefficients should be reviewed as a distribution because an unusually large correction may conceal a mechanical or sensor problem.

The fitness wearable build used a two-stage factory flow consisting of controlled firmware programming followed by a dedicated factory test application. Each stage generated an explicit result so that a unit could not reach packaging with an unknown firmware state or an incomplete functional record.

The pilot should also include a test-coverage review. Every major requirement and failure mode should map to design validation, calibration, production screening, final inspection, or a justified sampling plan. A failure is not controlled merely because it did not occur in the pilot.

6 Run the Complete Downstream Assembly Chain

PCBA acceptance is not the same as finished-device acceptance. Ultrasonic welding, press fitting, adhesive dispensing, screw fastening, overmolding, battery installation, enclosure closing, and waterproof sealing can introduce stresses that did not exist during board-level testing.

After 500 tested PCBAs for a fitness wearable were delivered to a downstream assembly site, spring contacts detached during ultrasonic welding of the finished housing. Incoming, in-process, outgoing, and board-level functional records showed that the assemblies had passed before final integration. The investigation therefore shifted from general PCBA quality to the vibration and support conditions created by the downstream process.

Traceability narrowed the point of introduction so the teams could evaluate welding parameters, fixture support, contact retention, and the mechanical tolerance stack. The assembly boundary became measurable instead of remaining an assumption.

Every production-intent pilot should travel through the full box-build route at least once. Ultrasonic welding, adhesive cure, heat staking, laser marking, waterproof testing, garment installation, and final kit pairing all belong inside pilot validation when they are part of the commercial process.

Responsibility boundaries should be written around measurable incoming and outgoing conditions. Otherwise, one supplier may release a board that meets its specification while the next process applies a load the assembly was never designed or tested to survive.

7 Validate Sealing Reliability and Compliance Readiness

Water, sweat, humidity, dust, and repeated charging make sealing a system-level requirement. Gasket compression, adhesive path, enclosure flatness, screw torque, connector geometry, and assembly cleanliness all influence the final result.

Before a new 200-unit build of an underwater wearable, silicone vacuum casting and injection molding were evaluated in parallel. The review compared deformation, assembly consistency, surface quality, expected yield, tooling implications, sealing compatibility, material availability, and housing-to-electronics fit.

Existing fixtures, software, and acceptance standards were checked before reuse because availability does not prove compatibility with the latest housing, firmware, connector, or requirement.

Where a water-resistance or ingress-protection claim is planned, pilot units should use production-intent housings, seals, adhesives, torque settings, and assembly instructions. Testing a carefully hand-sealed prototype does not characterize the process that normal operators will run. Leak or immersion results should remain linked to the relevant mechanical and material batches.

Compliance and transport planning belong on the same release schedule. A fitness wearable selected a readily available lithium-polymer battery that lacked the required UN 38.3 transport evidence. The gap had to be addressed during pilot planning because unresolved battery documentation could block air shipment even if every device passed functional testing.

Applicable CE and FCC market-access work, battery transport requirements, and RoHS documentation depend on the configuration and target markets. The pilot should confirm that the selected radio, antenna, battery, enclosure, labels, and firmware modes still match the compliance plan before volume inventory is committed.

8 Test Supply Continuity and Lot-to-Lot Consistency

A pilot is also the first full stress test of the BOM. Component lifecycle, allocation, minimum order quantity, lead time, packaging format, supplier change control, second-source readiness, and incoming inspection all affect whether a successful build can be repeated.

One fitness wearable used a pressure sensor that had reached end-of-life and was available only through limited remaining stock. The pilot team secured a final quantity, verified the received material, and made the constraint explicit before the next order. That gave the product team a defined decision window for redesign instead of allowing the line to stop unexpectedly after sales commitments had been made.

Before the next underwater-wearable batch, electronic items were similarly checked for discontinuation, price movement, lead-time exposure, replacement need, and whether advance purchasing was justified. This turned the BOM into a supply plan capable of supporting scheduled delivery.

Lot-to-lot consistency matters even when the part number remains unchanged. The pilot should define detectable incoming characteristics for critical batteries, adhesives, resins, coatings, springs, and sensors, retain lot traceability, and specify which supplier changes require approval or requalification.

An alternate part is not production-ready until its electrical behavior, mechanical fit, manufacturing process, firmware interaction, calibration impact, reliability, and compliance implications have been reviewed at the level appropriate to its risk.

The Pilot Scorecard Needs More Than Final Yield

Pilot success should be visible in data. Final yield alone can be misleading because a batch may reach 100 percent only after repeated test cycles, manual adjustment, component replacement, or engineering rework.

The scorecard should include first-pass and final yield, defect distribution, rework and retest time, cycle time, calibration-coefficient distribution, fixture repeatability, supplier-lot correlation, and traceability completeness. A low-volume pilot may not support a mature process-capability conclusion, but it should reveal drift or dependence on a particular operator or lot.

One internal pilot control plan used 98 percent as the PCBA yield review baseline. Falling below that level triggered a supplier improvement process rather than automatic acceptance based on eventual recovery. The exact number is not universal; it should reflect product risk, process maturity, and the agreed quality plan. What matters is that the trigger and required response are defined before the results arrive.

First-article records should include relevant visual and X-ray evidence before continuous production begins. Nonconformities need recorded disposition, appropriate root-cause analysis, containment, corrective action, and verification. ESD checks, equipment calibration, QC results, firmware versions, and rework history should remain available.

Reference samples also need governance. A sealed unit should represent an approved hardware, mechanical, cosmetic, and firmware state, with records that make it useful for comparison. An unlabeled sample in a cabinet is not a production standard.

Release the Process Rather Than Only the Shipment

A pilot review should end with an explicit decision. “The units shipped” is not a manufacturing-readiness conclusion.

• Pass means critical product requirements were met, the process is repeatable at the observed scale, documentation is released, and no unresolved issue threatens safety, compliance, core performance, or planned capacity.
• Conditional pass means a bounded issue has documented containment, ownership, deadline, affected scope, and verification plan. The condition must not conceal an uncontrolled safety, compliance, or essential-performance risk.
• Hold means a critical requirement failed, the root cause or affected population remains uncertain, the test system is not trustworthy, or the production process still relies on undocumented intervention.

The decision should be supported by a pilot report that records build quantity, configuration, suppliers and lots, process route, yield, failures, rework, calibration results, reliability evidence, deviations, open actions, release status, and approved reference samples.

The Eight-Point Wearable Pilot Release Checklist

Before increasing order volume, the team should be able to answer all eight questions with evidence.

• Manufacturability — Have PCB land patterns, soldering conditions, inspection access, and DFM findings been verified and incorporated into released files?

• Special components — Are packaging, orientation, feeder compatibility, placement, reflow, inspection, and alternate-source conditions defined for nonstandard parts?

• Mechanical quality — Have molded parts, finishes, dimensions, assembly fit, and relevant durability conditions passed aligned acceptance methods?

• Power stability — Has the complete device been exercised under realistic dynamic loads, battery states, charging modes, and wireless activity without uncontrolled resets or rail instability?
• Calibration and test coverage — Are fixtures, references, limits, firmware, cycle time, retest rules, and data records ready, with every critical requirement mapped to a verification step?
• Downstream assembly — Has the full box-build route been completed using production-intent processes, with measurable responsibility boundaries between manufacturing stages?
• Reliability and compliance — Have sealing and applicable reliability checks used production-intent parts, while battery transport and market-access work remain aligned with the shipping configuration?
• Supply continuity — Are end-of-life, lead-time, lot variation, change-control, inventory, and alternate-part risks covered by a documented sourcing and inspection plan?

Pilot Production Is the Lowest-Cost Place to Find Expensive Problems

The distance between a working wearable prototype and stable production is rarely defined by one dramatic technical failure. It is usually created by dozens of small assumptions that were never converted into specifications, fixtures, test limits, work instructions, supplier controls, and traceable records.

A well-designed pilot makes those assumptions visible while quantities remain manageable and changes remain affordable. It gives the product team evidence for increasing volume, holding the design, changing a supplier, improving a fixture, revising firmware, or reopening an unresolved risk before inventory and delivery commitments remove that flexibility.

The goal is not to produce a perfect-looking pilot report. The goal is to release a manufacturing system that can reproduce the intended product across normal operators, lots, stations, and builds—and to know which result should stop the next shipment.
