Plastic granules

Injection Molding CMF Sample Kit

Every material reacts differently in molding

  • Compare multiple plastic materials in one test kit
  • Visualize CMF outcomes directly from real injection molding
  • Reduce retooling costs and validation time
  • Accelerate CMF and design decision-making

The Injection Molding CMF Test Kit by NexPCB enables designers and engineers to visualize and evaluate the real behavior of plastic materials under injection molding conditions.

It includes 11 material and process combinations, offering a quick and cost-effective way to compare performance, texture, and appearance without extensive testing cycles.

This kit helps hardware teams understand key properties — such as flowability, shrinkage, surface finish, gloss, and transparency — supporting smarter material and process selection in early product development.

Included Materials & Processes:

PC+BAS (Black) PA6 (Black) PA6+GF (Black) PA6+CF (Black)
ABS (Black) PC (Black) PP (Black) PC+ABS (White)
POM (White) ABS (Transparent) PP (Transparent)



Material, Design, Supply Chain & Risk Prediction

Material Selection

Visually compare the flow characteristics and surface finish of different materials.

Supply Chain Evaluation

Standardize part specifications to rapidly screen suitable suppliers and material grades.

Structural Design Optimization

Identify how wall thickness, hole placement, gate locations, and other factors impact performance.

Risk Prediction

Identify and mitigate potential defects before mass production.

Design For Injection Moulding

Mold Flow Analysis Simulation

Verify gate location, simulate filling behavior, warpage tendencies, and weld line positioning → Ensure design feasibility.

Actual Injection Molding Validation

Confirm transparency, ejector marks, weld lines, and short shots → Simulate real mass production conditions.

CMF Key Test Areas

cmf

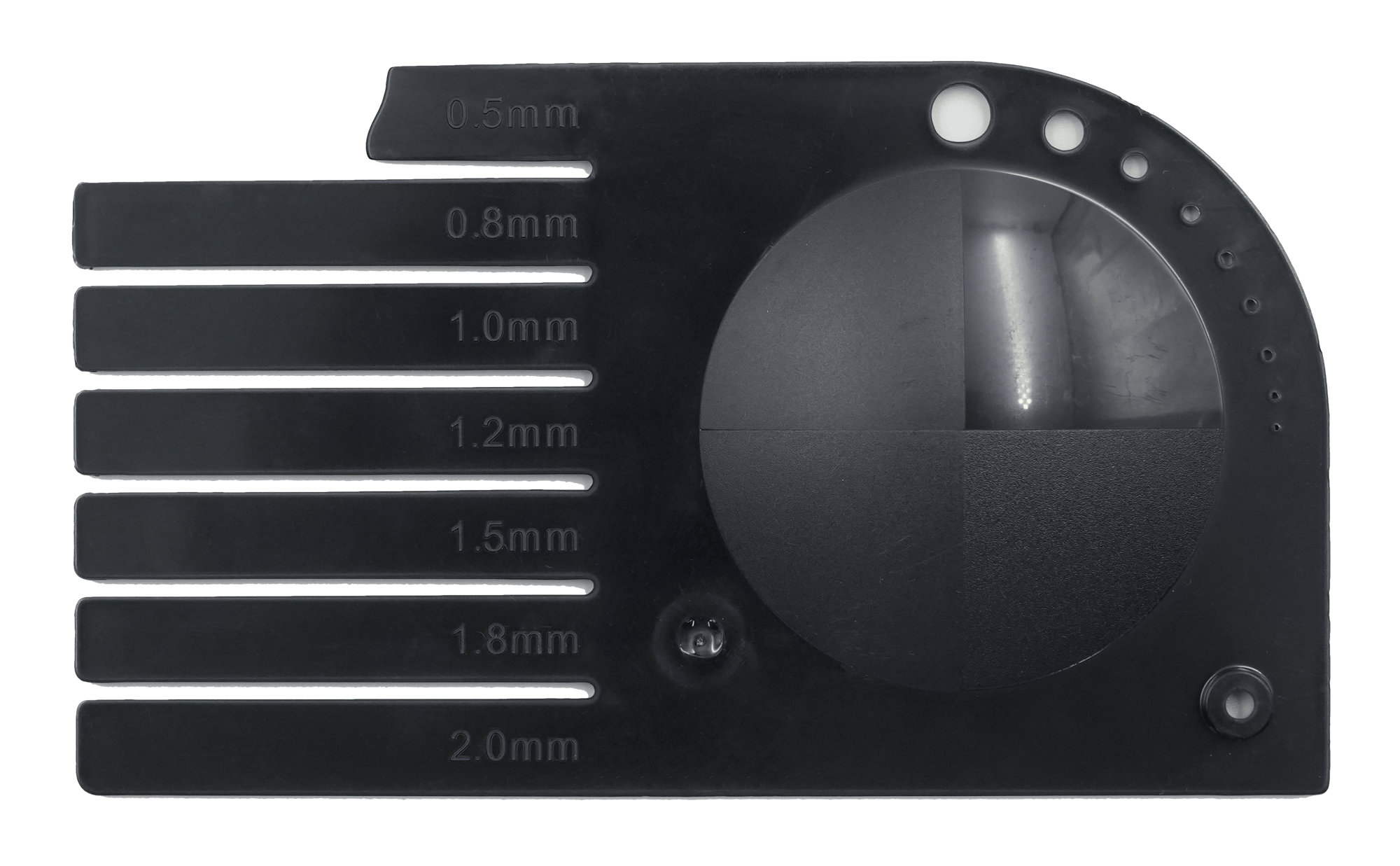

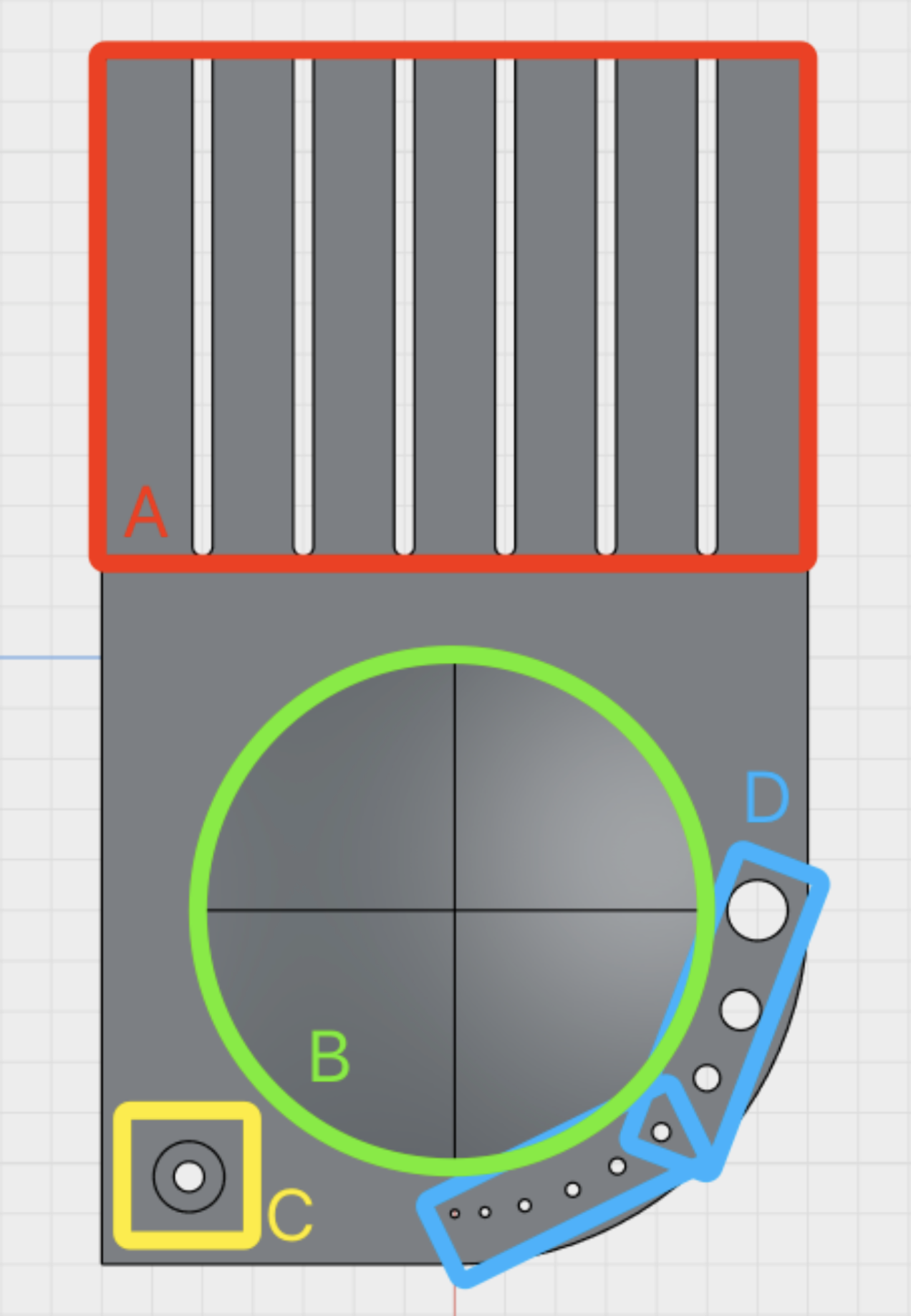

Tip: See part photo with A/B/C/D zones highlighted

A. Flowability Test

Flow filling capability at different wall thicknesses → Determines susceptibility to short shots and air marks.

C. Boss forming reliability

Impact of boss structure on appearance→ Evaluation of reliability and defect risk

B. Surface Texture Test

Texture comparison → Evaluates material performance under gloss and reflection effects.

D. Weld Line & Hole Evaluation

Detect susceptibility to weld lines, out-of-roundness, and flash in through-hole structures.
